Bianco Circulating pump - Stainless BIA C3280-180

Bianco Circulating pump - Stainless BIA C3280-180

$667.00incl. GST
SKU: Bianco Circulator pump stainless 3 speed
Weight: 1 kg
Product Type:
Technical Specifications
Brand Bianco Pumpz
Product Type Circulator Pump
Suitable For Solar Hot Water
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 130 L/min
Head Range Category a. 0 - 39 m
Max Head (m) 8 m
Port Size Outlet 2" BSPM outlet
Warranty (months) 24 Months
Volts 240 V



This is a pump used for domestic hot water circulating. The Stainless steel housing makes it suitable for underfloor heating. It is maintenance free and is low in noise. Comes complete with 2" F x 1-1/4" F unions.


The pump is characterised by:

  • Circulation body materials suitable for potable water

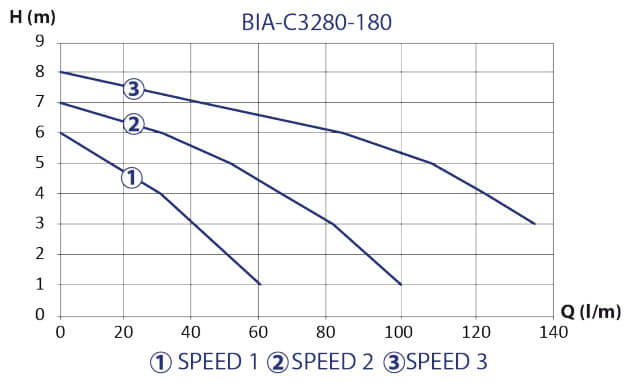

  • 3 speed operation
  • Flows to 130 l/min
  • Heads to 8m

Liquid temperature: 2OC - 110OC
Materials: Pump body: Stainless Steel 304 SS
Impeller: Corrosion resistant composite PPO
Back Plate and Rotor Can: Stainless Steel 304 SS
Unions: 2" F x 1-1/4"F Unions Stainless Steel 304 SS

Installation: Maximum ambient temperature: 40OC
Maximum Operating Pressure: 10 bar
Port spacing: 180mm
Port size: 2” BSPM (1-1/4” BSPF if used with supplied unions)

Electrical Data: 230V
