Ozone Water Treatment by ProZone

For Pools Up to  150,000 litres

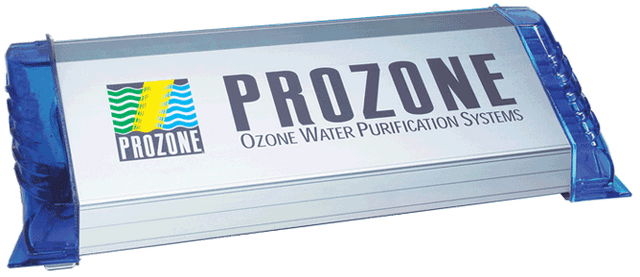

The Prozone provides a universal ozone system for pools up to 40,000 gals (152,000 liters). Housed in an anodized aluminum case, the system features two hybrid arc tubes to generate ozone, a universal power supply (operates on 120 and 240 VAC), and a universal bypass installation kit (good for 1-1/2 in and 2 in returns).

Prozone has combined the PZ7 product line to one universal model. This patented system has two corona hybrid arc tubes which provide a combination of very ultraviolet and corona discharge ozone generation technologies for pools up to 144 m3 (40,000 gal).

Prozone’s patented Corona Hybrid Ozone systems provide higher concentration ozone generation without the corrosive and toxic by-products of traditional corona discharge machines. The result is a new technology that produces a reliable, high output — and takes advantage of the inherent simplicity, ruggedness and pure ozone production of the very ultraviolet system.

The universal power supply allows the unit to operate automatically on 110/60, 220/60, or 230/50.

Features:

• Universal model – stock one unit for all residential in-ground pools
• to 40,000 gal (152,000 l)
• Universal Power supply
• Easily retrofittable to existing installations
• Labeled with vibrant color pad printing
• Retail boxing available
• Prozone Patented Corona Hybrid Arc Tube harnesses the high ozone concentrations of Corona Discharge generators while maintaining the simplicity and reliability of VUV technology
• Optional Prozone Patented Dynamic Venturi Injector Bypass System allows maximum ozone/water mixing for superior water quality. The bypass also means a quick retrofit installation or replacement for all existing ozone generators.
• Rugged, functional housing: heavy extruded aluminum case for durability; translucent gasketing glows when system is on
• Low cost, low maintenance operation
• Warranty – 2 years

Universal Saddleclamps

Prozone has developed and patented an integrated saddle clamp that makes installation of the PZ7 easier than ever. The connection is adjustable so that it can accommodate 1 1/2 -inch or 2-inch lines (or their metric equivalent).

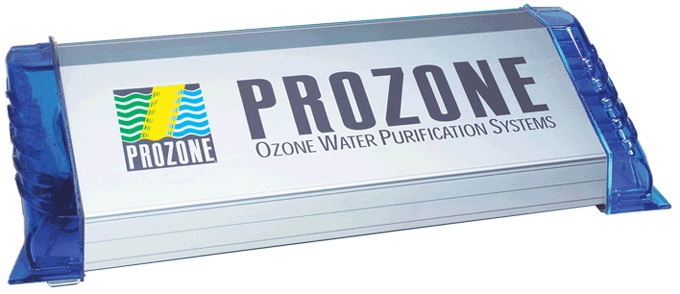

Rugged Housing

The extruded anodized aluminum housing is labeled with vibrant color pad printing. The layout enhances the look and ruggedness of the unit.

Serviceability

The units require no maintenance and can be serviced easily when required.

Standard System Specifications

• 2 Prozone Patented Corona Hybrid Arc Tubes
• Prozone Universal Solid State Ballast
• (90 VAC to 270 VAC, 50/60 hz)
• Electrical: .8 amps
• Dual Nema Plug or 3 Wire Pigtail
• Universal Composite Saddle Clamp (1½ or 2 in.)
• Operating Temperature: -25º F. to +140º F.
• Shipping Weight: 10 lbs.
• Size: 16 3/4” X 7” X 4”
