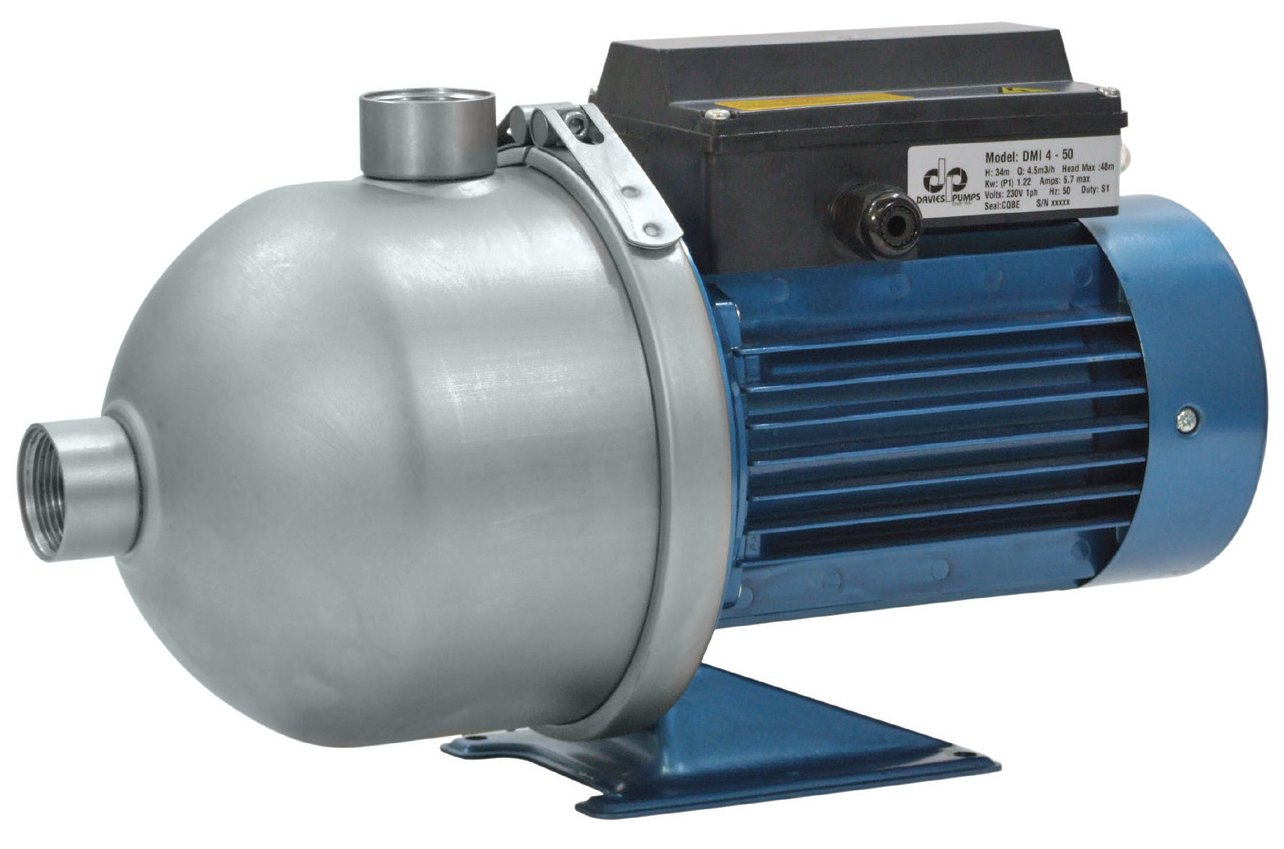

Davies DMI Pump Series – 316 Stainless Steel Horizontal Multi-Stage

$1,197.15
Tax included Shipping calculated at checkout.
SKU: Davies DMI pump series
Davies DMI pumps

FREE New Zealand Delivery nationwide on orders over $200

Lowest Price Guarantee

Shop with confidence from Water and Pool Systems. Our volume discounts guarantee the absolute lowest prices.

If you find a lower total delivered price by a licensed and authorized pool supply catalog or website we will refund you the difference.

Read about our Lowest Price Guarantee

Shipping and Returns

Place your order online and we will promptly ship it using a secure carrier with tracking.

Satisfaction guaranteed! If you are not completely satisfied, you may make a return for a full refund or replacement within 14 days

Read our Shipping and Returns Policy

Downloads:

The Davies Pumps DMI series are an industrial multistage stainless steel pump capable of handling demanding applications whether it be just clean water supply or industrial washing machines and fertilizer dosing systems the DMI series are built to last.

The DMI wet end is built entirely of 316 stainless steel for hygienic applications and corrosion resistance.

The mechanical seal is of high quality Silicon carbide with EPDM elastomers for long service life. Viton upgrade available.

Technical Features:

  • Liquid temperature range: 0°C to +110°C.
  • Maximum ambient temperature: +40°C.
  • Maximum operating pressure: 10bar.
  • Pump casing, suction inter connector, chamber and impellers: 316 stainless steel.
  • Pump shaft: 316 stainless steel.
  • Mechanical seal: Silicon carbide/Silicon carbide.
  • O rings: EPDM.
  • Viton upgrade also available

Motor Features:

  • Totally enclosed, fan cooled.
  • IP54 enclosure.
  • Class F insulation.
  • 50Hz 220-240V 1 Phase.
  • 50 Hz 220-240V/380/415V.
  • 3 Phase version requires user supplied overload protection.

316 Stainless Wet End

Dimensions And Specifications
Part No. A B C D E F G H I J K L M
DMI 2-40 403 255 171 162 1″ 1″ 204 118 243 3/8″ 132 140 141
DMI 2-50 403 255 171 162 1″ 1″ 204 118 243 3/8″ 132 140 141
DMI 2-60 403 255 171 162 1″ 1″ 204 118 243 3/8″ 132 140 141
DMI 4-20 403 255 171 162 1 1/4″ 1 1/4″ 204 118 243 3/8″ 132 140 141
DMI 4-30 403 255 171 162 1 1/4″ 1 1/4″ 204 118 243 3/8″ 132 140 141
DMI 4-40 403 255 171 162 1 1/4″ 1 1/4″ 204 118 243 3/8″ 132 140 141
DMI 4-50 441 255 171 162 1 1/4″ 1 1/4″ 204 118 243 3/8″ 132 140 141
DMI 4-60 441 255 171 162 1 1/4″ 1 1/4″ 204 118 243 3/8″ 132 140 141
DMI 8-10 403 255 181 162 1 1/2″ 1 1/2″ 204 118 243 3/8″ 132 142 141
DMI 8-15 441 255 181 162 1 1/2″ 1 1/2″ 204 118 243 3/8″ 132 142 141
DMI 8-20 441 255 181 162 1 1/2″ 1 1/2″ 204 118 243 3/8″ 132 142 141
DMI 8-25 514 267 200 235 1 1/2″ 1 1/2″ 204 121 243 3/8″ 178 142 177
DMI 8-25T 441 233 181 162 1 1/2″ 1 1/2″ 204 118 243 3/8″ 132 142 141
DMI 8-30 514 267 200 235 1 1/2″ 1 1/2″ 204 121 243 3/8″ 178 142 177
DMI 8-30T 493 261 200 235 1 1/2″ 1 1/2″ 204 121 243 3/8″ 132 142 141
DMI 12-10 441 255 181 162 1 1/2″ 1 1/2″ 204 118 243 3/8″ 132 142 141
DMI 12-15 441 255 181 162 1 1/2″ 1 1/2″ 204 118 243 3/8″ 132 142 141
DMI 12-15T 441 233 181 162 1 1/2″ 1 1/2″ 204 118 243 3/8″ 132 142 141
DMI 12-20 514 267 200 235 1 1/2″ 1 1/2″ 204 121 243 3/8″ 178 142 141
DMI 12-20T 493 261 200 235 1 1/2″ 1 1/2″ 204 121 243 3/8″ 178 142 177
DMI 12-25 514 267 200 235 1 1/2″ 1 1/2″ 204 121 243 3/8″ 178 142 177
DMI 12-25 493 261 200 235 1 1/2″ 1 1/2″ 204 121 243 3/8″ 178 142 177
DMI 12-30T 539 284 230 245 1 1/2″ 1 1/2″ 204 133 243 3/8″ 198 142 197
