Onga Farmmaster 700 series pumps - Shallow well

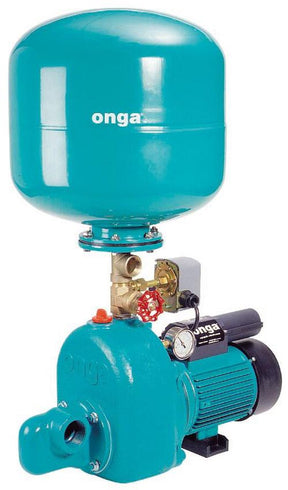

An efficient and reliable cast iron pump. The OJ Farmaster Shallow Well has a bottle-shaped casing which allows easy escape for air and aids the pump in priming suction lines. Available in single & three phase options. The pump must be teamed with an injector & housing as well as a pressure tank. The minimum pressure tank size for the OJ700 is a 36 litre tank upwards.
Shallow Well Specifications
| Model | Max Flow Rate | Max Pumping Height | Suction Lift (Shallow Well) | Pressure | Pressure Setting |
|---|---|---|---|---|---|
| S700 | 162 LPM | 40 m | 7.6 m | 430 kPa | 210–350 |
| S701 | 114 LPM | 46 m | 7.6 m | 540 kPa | 280–455 |
| S702 | 85 LPM | 52 m | 7.6 m | 635 kPa | 350–560 |
| S703* | 69 LPM | 58 m | 7.6 m | 690 kPa | 420–630 |
| S704* | 56 LPM | 70 m | 7.6 m | 800 kPa | 490–700 |
*Includes pump & pressure switch/gauge (injector and housing sold separately).
To make a complete OJ Shallow Well set you need the pump (either single or three phase), the injector & housing (which includes housing, gasket, jet and venturi) from the table above, and a pressure tank.
| Model | kW | Voltage | Amps |
|---|---|---|---|
| OJ700 Single Phase | 1.5 | 240V | 8.9 |
| OJ700 Three Phase | 1.5 | 415V | 3.57 |
Applications
- Domestic, industrial or rural pressure pump for use as a manual or an automatic pressure system
- Stock watering
- Irrigation
- Water transfer
- Water sources including tanks, bores, dams, creeks and rivers (thanks to various injector combinations)
Deep Well Specifications
Technical Features
- Suitable for pumping clean non-aggressive liquids without solids or fibres in suspension
- Fluid: Water
- Maximum water temperature: 55°C
- Minimum water temperature: 1°C
- Maximum ambient temperature: 40°C
- Frequency: 50 Hz
- Motor rating: 2900 rpm
- Amps:
- Single Phase: 8.5
- Three Phase: 3.6
- Insulation class: B
- IP rating: IP44
2 Year Warranty
