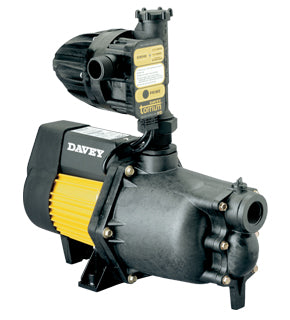

DAVEY XJ70T Jet Assisted Pressure Pump with Torrium2 Controller

Robust & compact,  single stage, jet assisted centrifugal pump with Torrium2® constant flow control and loss of prime device for automatic water pressure. Designed for medium to large size, single and multi-storey homes.

Recommendation:  A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.

A free three-way tee is provided with any pump and pressure tank combination.

APPLICATIONS:

Ideal for pumping clean, nonvolatile liquids without fibres or solids in such applications as:

• Household water supply
• Irrigation
• Water transfer
• Washing systems
• Pressure boosting

TECHNICAL SPECIFICATIONS:

• Power -1150W (1.5 HP)
• Single phase with standard NZ 3 pin plug
• Max Flow rate: 70 Litres per minute
• Max Pressure: 68 psi
• Self Priming: 7m Suction
• Max discharge head: 48 metres
• Inlet size: 1” inch BSP (25mm)
• Outlet size: 1” inch BSP (25mm)
• Built in thermal overload protection
• Insulation class B
• IP55 Protection
• Liquid temperature range: 1 - 50ºC
• Max operating pressure: 4.8 bar

FEATURES:

• Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
• Starts automatically when the tap is turned on
• Torrium2® cut-in pressure is normally 80% of the pumps last shut-off head.
• Operates constantly from low flow to full flow
• Stops automatically when the last tap is turned off
• Run Dry Protection
• Corrosion resistant stainless steel construction
• Stainless steel pump housing
• Stainless steel motor shaft
• Built in thermal overload protection

2 Year Warranty
