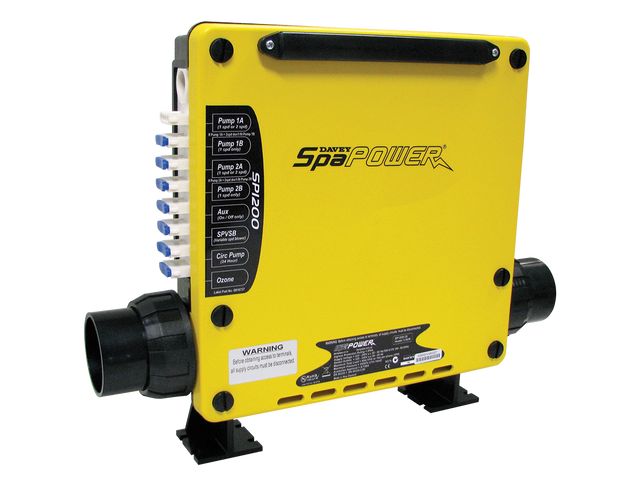

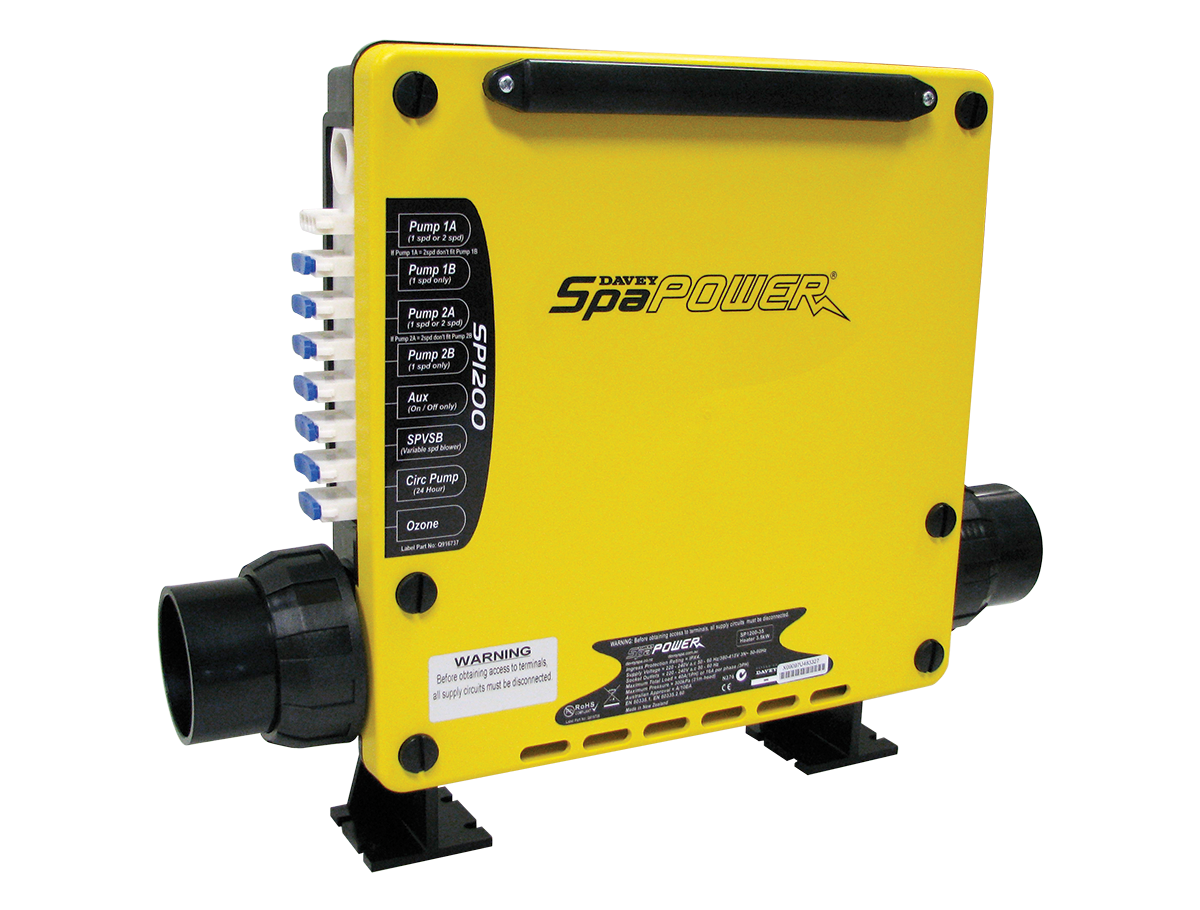

Davey Spa Pool Controller SP1200 +6kw Heater + touchpad

The Davey SP1200 range of spa controllers are the perfect controller to drive large spa pools and swim spas. The most feature packed controller in the range, the SP1200 controllers can run up to five spa pumps, plus multiple blowers, a circulator pump, ozone generator, and will control a light display that will impress your guests.

The SP1200 range also features a 7 multi-lingual touchpad which is easy to use and fully programmable: sold separately.

The SP1200 is sold in the following heater sizes= 3.5kw, 4.5kw, 6.0kw. All Model are rated up to 40 amp single phase MAX but this can be lower depending on the power draw of the items plugged into the controller. The 3.5kw model can also be set up with a 3 phase power connection

Controller System is sold complete with: Heater/Control Box, 2 X 50mm unions, 1 X Touch pad and overlay, 1 X In pool temp sensor (you don't need to use the in pool sensor as there is a second sensor built into the control box)

This Controller can be set up in the following configurations

High Voltage AMP Sockets : Pump 1A (one or two speed pump) Pump 1B (single speed pump, this socket can't be used if socket 1A has a two speed pump fitted). Pump 2A (one or two speed pump) Pump 2B (single speed pump, this socket can't be used if a two speed pump is fitted to socket 2A) AUX Output (this socket can run a blower or pump) SPVSB (this socket can only be used for a Davey Variable speed blower) Circ Pump Socket, Ozone Socket

Low Voltage Sockets inside controller: 2 X Touch pad sockets, 4 X Davey LED light sockets, 1 X in pool temp sensor socket, 1 X 12volt light Output

This listing is for a SP1200 Controller + 6kw heater + touchpad
